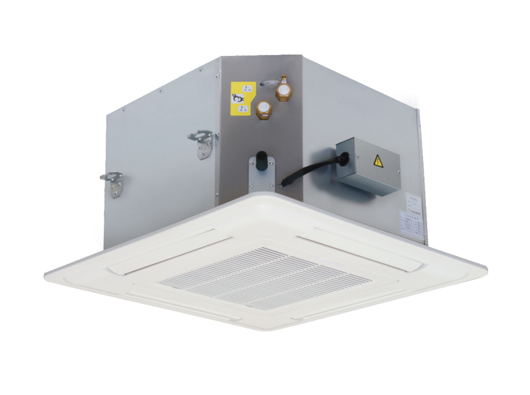

          Self-Drainage 4-way Cassette

          Self-Drainage 4-way Cassette

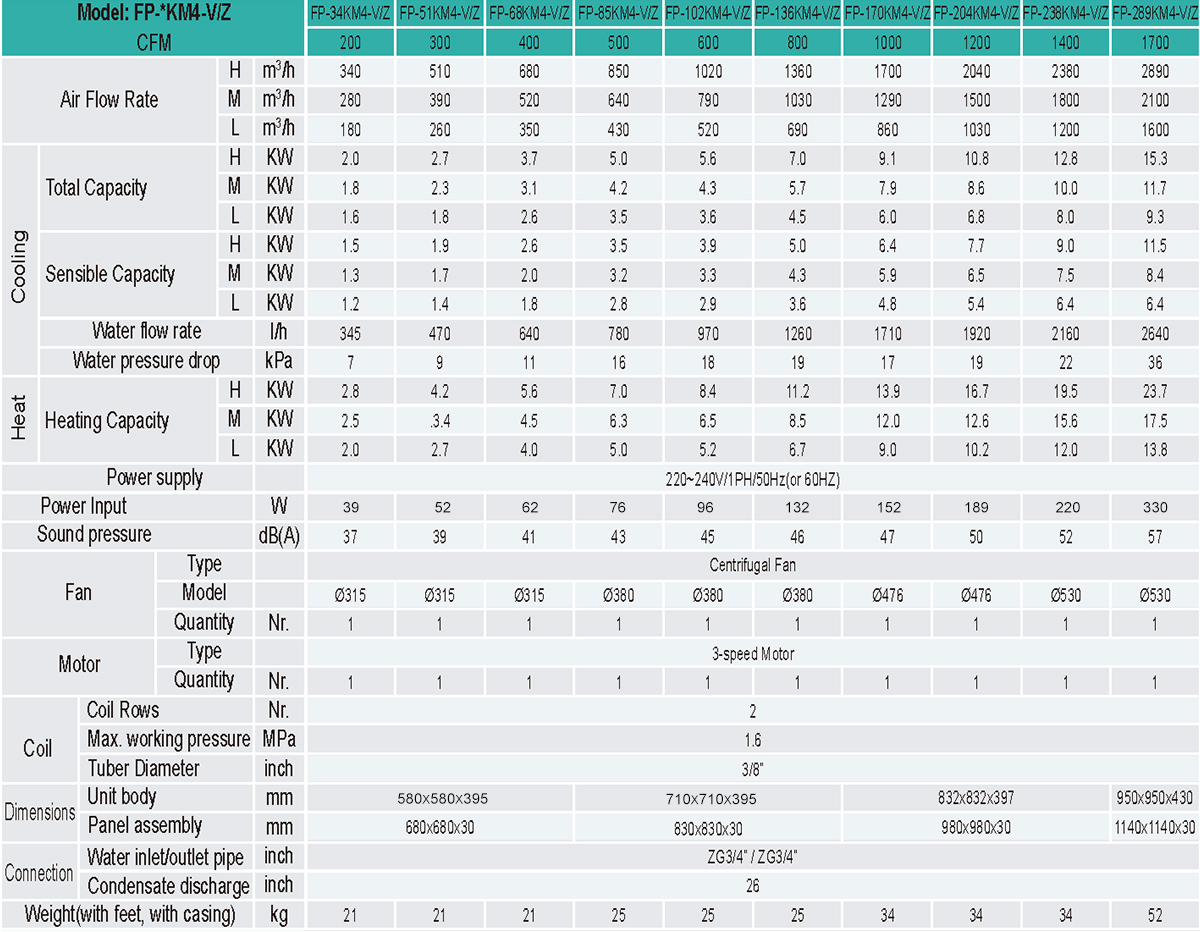

          Advantagestechnical parameter

          Free drain pump, Self drainage, for hot/chilled water system and ceiling installation


          Drained by nature
          without drain pump inside, running stable because of no drain pump P.C.B which is easy to damaged.

          Unit Body

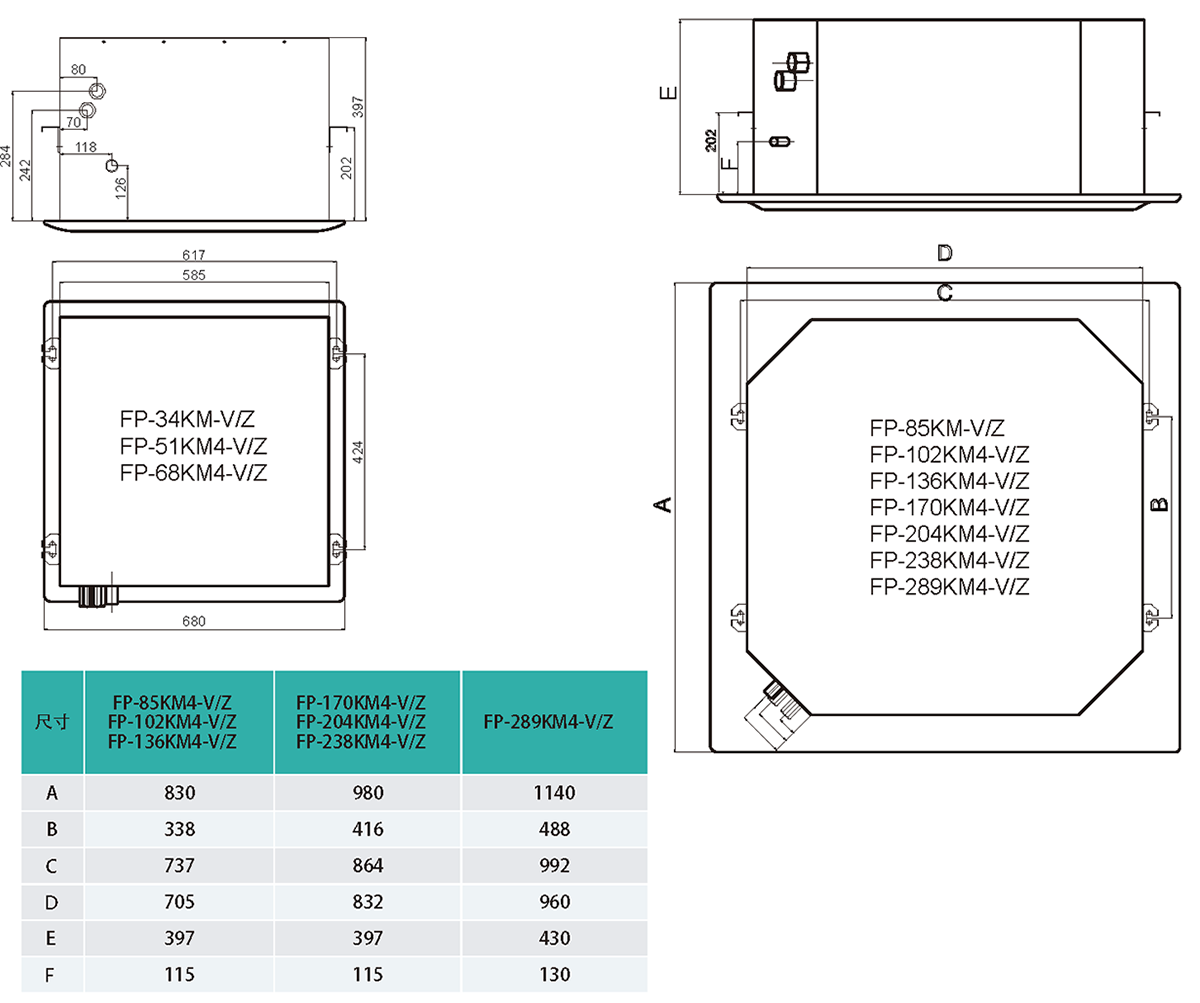

          The unit height is 397mm(Size 289 is 430mm) which is suitable for the places where have enough installation space.

          Panel Assembly
          Aesthetic panel design, in ABS material with synthetic washable and removal air filter. Adjust the lover by manual, auto-swing function and remote controller is optional after installing the PCB system.

          Condensate Drain Pan
          Special design condensate drain pan with high drained dropping, it drains water quickly.

          High Efficiency Coil
          Coil are made of copper tubes and high exchange surface area aluminum blue fins. All coils are 100% tested against leaks by 16bar,1.6Mpa air pressure. with 3/4”pipe connections and air bleed vent.

          Quite running
          One-time injection forming wheel, no welding between the fan blades and inlet cone/end plate, it makes the wheels good balancing; an anti-vibration rubber is installation in the hub to ensure less vibration, low noise on the wheels and motors. Each wheel will be balanced under G0.5mm/s.

          Grille
          The finger grille is optional to prevent from hand injury
